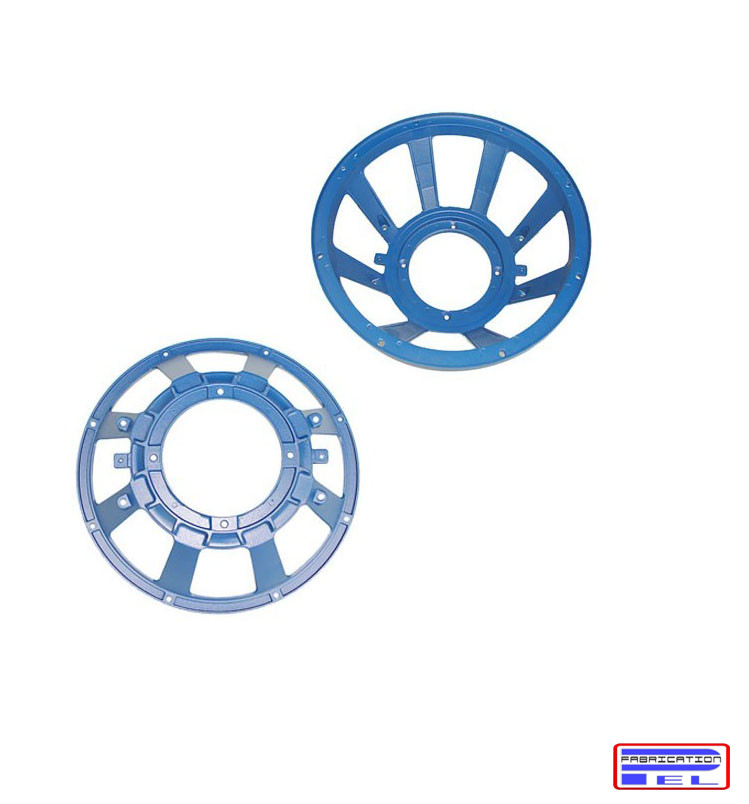

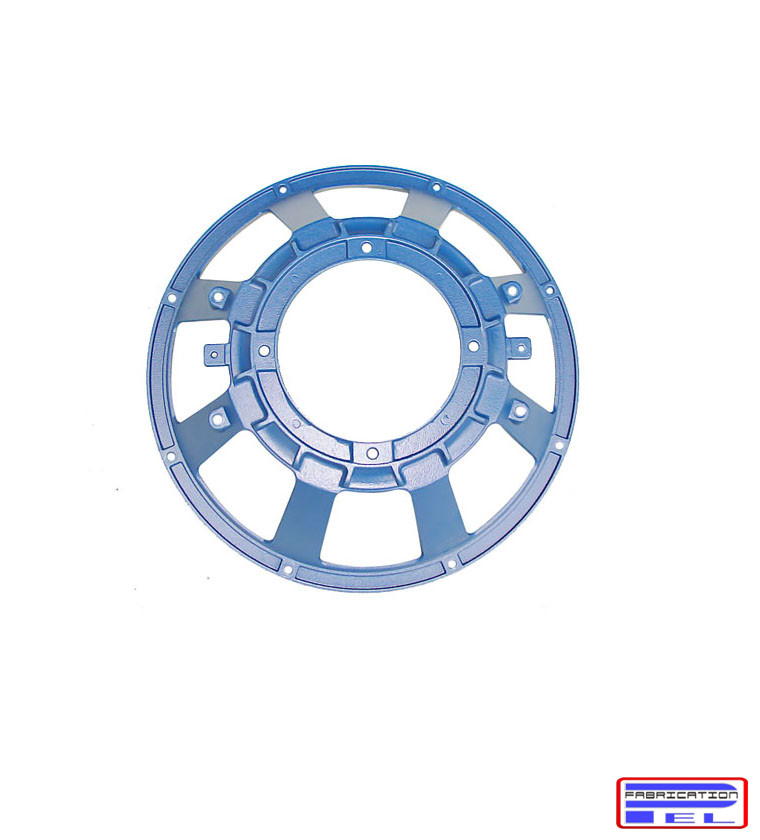

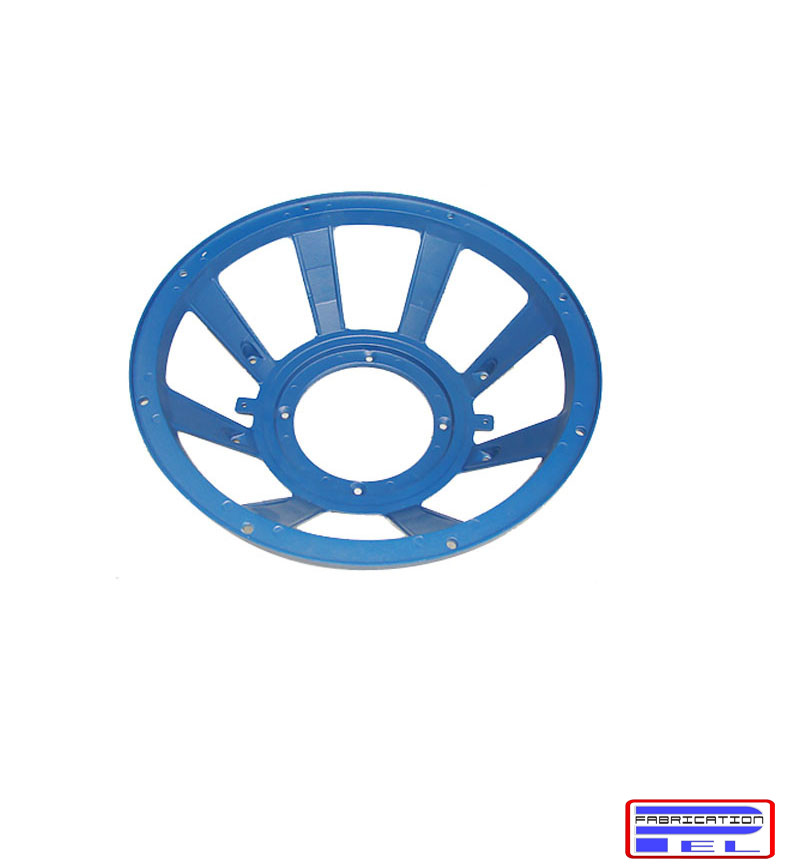

D1015

Item: D1015

Description: 15" Frame

Material: Pure aluminum alloy

Color: Blue (or any other colours)

Finish: Baking paint,Spray,Electroplate,ect.

Detailed size:
Total height:125mm
Effective height:104.5mm
External diameter:390 mm
Elastic wave diameter: 189 mm
Mounting hole distance:371-8-7 mm
Riveting clamp hole distance: 152-4-6.5mm

Instruction: Pure aluminum alloy frames are different from any other frmaes such as zinc alloy and cast iron.PEL aluminum alloy have absolutely high quality,it not only can prolong the life of your audio,but also improve sound quality of your audio with good audio paper.It must be your top choice!
