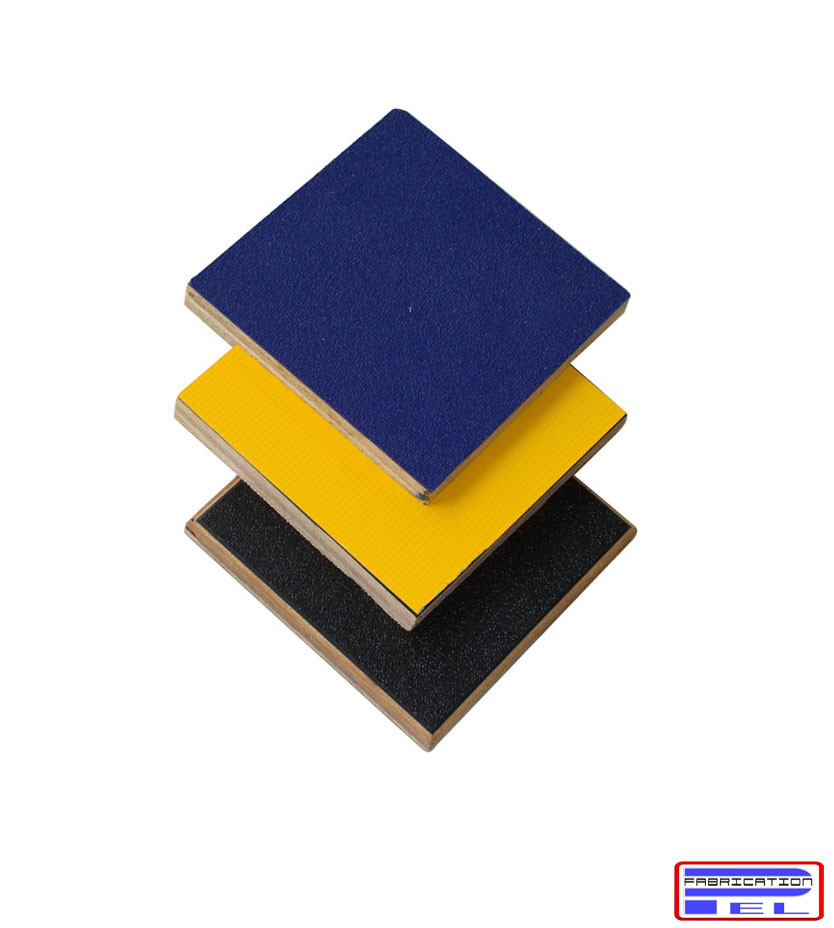

Picture1: M7109(Black), M7209(Bule),M7309(Yellow),---9MM Plywood with 0.5-0.6mmFire-proof board

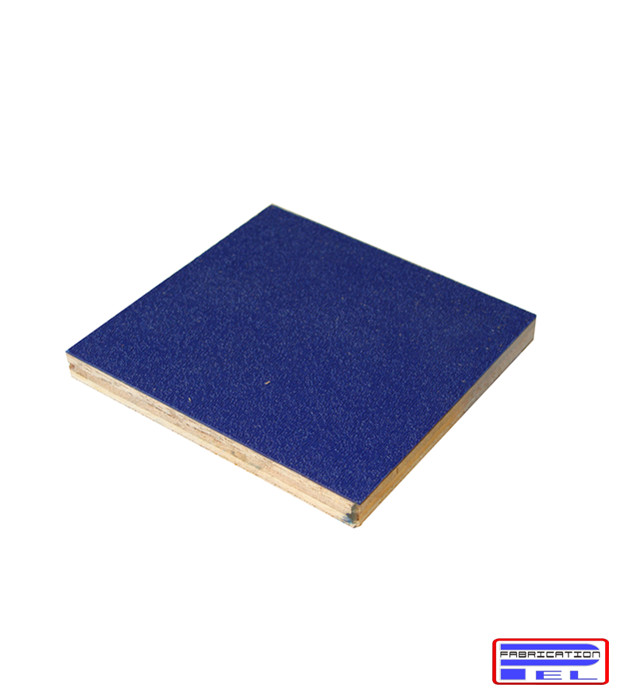

Picture 2: M8209 (blue), --- 9mm wood with 0.9mm blue ABS sheet
Picture 3: M8109 (black),----9mm wood with 0.9mm blue ABS sheet
picture 4: M9109 (Black), M9409(Red)---9mm wood with football texture phosphor diaphragm
Picture 5: M9109N (Black), M9409N(Red)---9mm wood with new football texture phosphor diaphragm
Picture 6: M19109N (Black), M19409N(Red)---9mm wood with new Square texture phosphor diaphragm

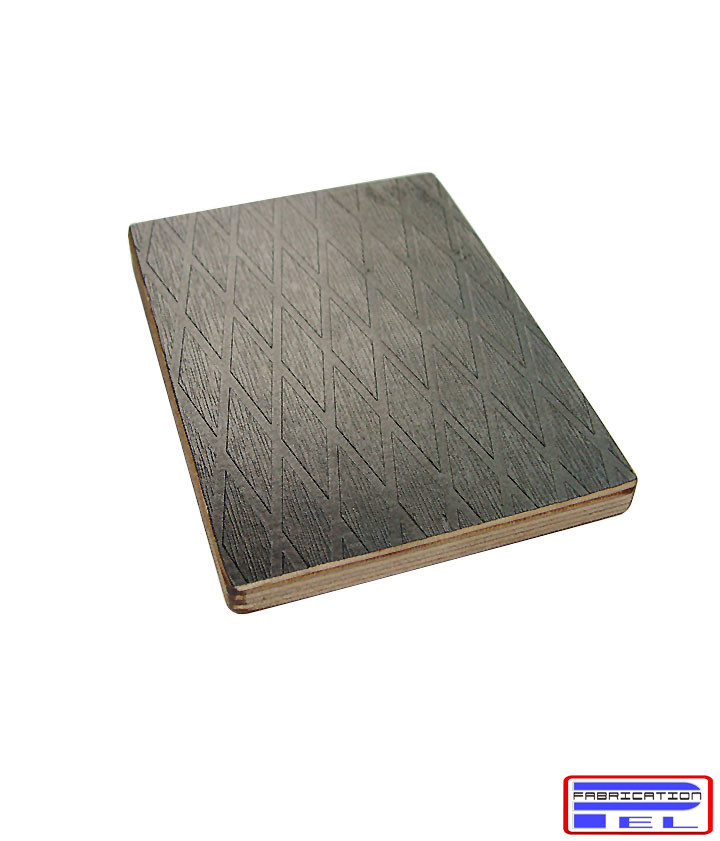

Picture 7: M29109N (Black), M29409N(Red)---9mm wood with new diamond texture phosphor diaphragm
Luan ply wood with fibreglass laminate
Material: Wood / ABS sheet / High Pressure Laminate / Sphere pattern / Grid pattern
Size: 2438 *1219 *9.9mm (or different thick 12mm; 18mm...)
Using all kinds of coloured(black /yellow /green /red /blue /orange /white /purple /gray /brown /silver)
ABS sheet with hair pattern, through high technology to produce ABS lamination,it apply to all kinds of flying cases and aluminium cases.
Size:
1.22M(Width)*2.44M(Length)
9mm/12mm/18mm thick
Most Common size: 1220*2440*9mm
Most Common colour: Black
Advantages of the cases made of ABS lamination:
1. Not breaking even in the sun.
2. Waterproof in the rain.
3. Contrast to the HPL,ABS laminations have high wear resistance.There is no scratches even using common hard objects to scrape on it .(except for something like the kine)
